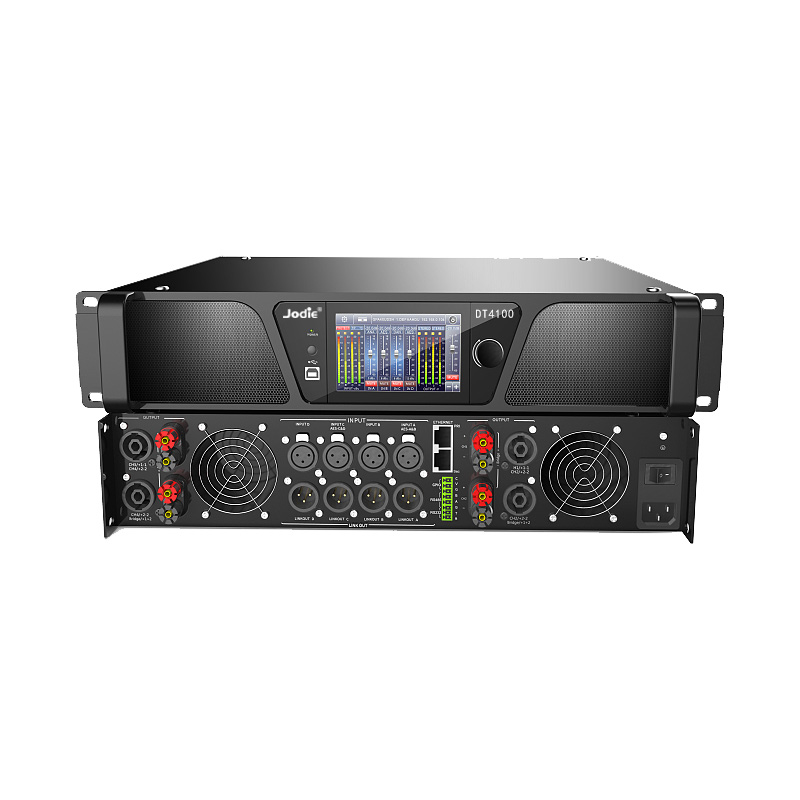

DSP Network Power Amplifier (2U Model)
Model:DT4100 Guangzhou Jodie Audio Equipment Co., Ltd.
Input and Output Specifications & Technical Parameters Input Audio Source: Analog, DANTE, Pink Noise, White Noise, Sine Wave Minimum Output Impedance: 4Ω per channel Input Interfaces: 4×XLR Balanced Inputs Input EQ: 31 Bands Output Interfaces: 4×SPEAKON Connectors; 4 Binding Posts Output EQ: 10 Bands Number of Presets: 79 Maximum Input Level: 20dB Sensitivity: 12dBu, 6dBu, 0dBu Signal-to-Noise Ratio (SNR): 103dB Frequency Response: 20Hz ~ 20kHz (±0.5dB) @ 1W, 8Ω THD+N (Total Harmonic Distortion + Noise): <0.08% from 1W to Full Power Sampling Rate: 48k/24bit Constant Voltage & Constant Impedance: 100V, 70V, 8Ω, 4Ω Dante (Optional): 4-Channel Dante Display Screen: 4.3-Inch IPS Capacitive Touchscreen Protection: Audio Limiter, High-Temperature Protection, DC Protection, High-Frequency Protection, Short-Circuit Protection, Back EMF (Electromotive Force) Protection, Peak Current Limiter, Inrush Current Limiter, Power-On Delay, Power Circuit Breaker Protection, Power Overvoltage/Undervoltage Protection PC Software: Software-Controllable Media Matrix, Audio Processor, DSP Power Amplifier, Active DSP Module Power Supply: Voltage Input 180/264VAC
Input and Output Specifications & Technical Parameters
Input Audio Source: Analog, DANTE, Pink Noise, White Noise, Sine Wave
Minimum Output Impedance: 4Ω per channel
Input Interfaces: 4×XLR Balanced Inputs
Input EQ: 31 Bands
Output Interfaces: 4×SPEAKON Connectors; 4 Binding Posts
Output EQ: 10 Bands
Number of Presets: 79
Maximum Input Level: 20dB
Sensitivity: 12dBu, 6dBu, 0dBu
Signal-to-Noise Ratio (SNR): 103dB
Frequency Response: 20Hz ~ 20kHz (±0.5dB) @ 1W, 8Ω
THD+N (Total Harmonic Distortion + Noise): <0.08% from 1W to Full Power
Sampling Rate: 48k/24bit
Constant Voltage & Constant Impedance: 100V, 70V, 8Ω, 4Ω
Dante (Optional): 4-Channel Dante
Display Screen: 4.3-Inch IPS Capacitive Touchscreen
Protection: Audio Limiter, High-Temperature Protection, DC Protection, High-Frequency Protection, Short-Circuit Protection, Back EMF (Electromotive Force) Protection, Peak Current Limiter, Inrush Current Limiter, Power-On Delay, Power Circuit Breaker Protection, Power Overvoltage/Undervoltage Protection
PC Software: Software-Controllable Media Matrix, Audio Processor, DSP Power Amplifier, Active DSP Module
Power Supply: Voltage Input 180/264VAC
