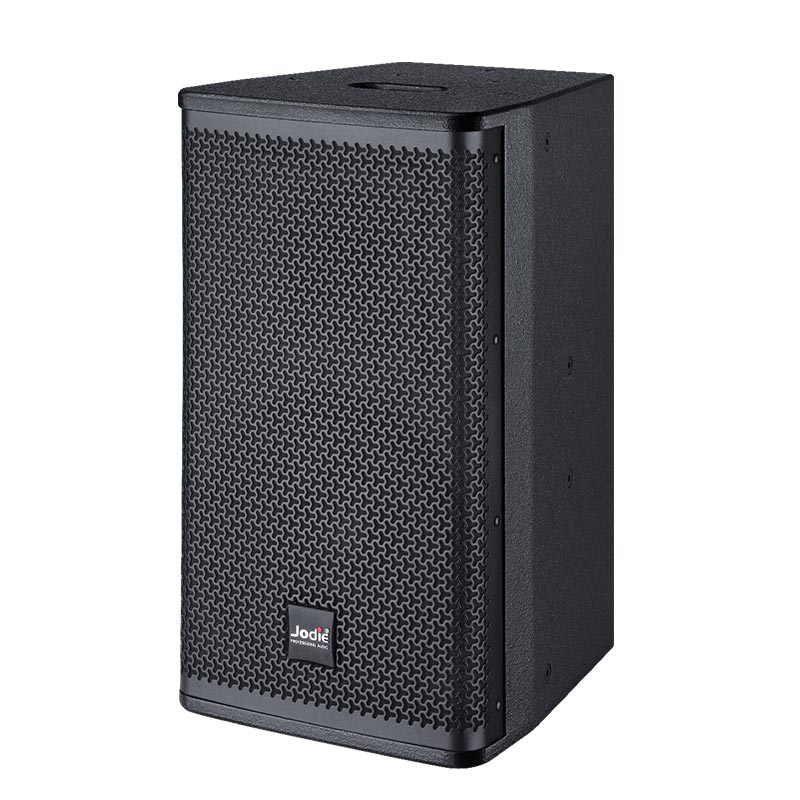

12-Inch Professional Entertainment Speaker

Model:DK-12   Guangzhou Jodie Audio Equipment Co., Ltd.

*Application Scope: Suitable for center channel or fill sound in KTV rooms, party rooms and clubs. *Delicate timbre and excellent clarity; compact and exquisite size with a fashionable and high-end appearance *12-inch die-cast aluminum basket high-power differential drive woofer*1.75-inch annular polyethylene diaphragm compression tweeter *Cabinet made of 15mm high-density board, with black wear-resistant paint finish on the surface *90°×60° coverage angle design, featuring uniform and smooth on-axis and off-axis responses *Cutting-edge appearance, with a steel protective grille equipped with a dust-proof mesh *Precisely designed crossover optimizes power response and mid-frequency performance of vocal parts *Multiple suspension methods for flexible installation, with one jack for pole mounting *Adopts LRC circuit crossover and PTC protection circuit design to ensure more stable system operation *Cabinet manufactured with precise CNC machining combined with complex grooved wedge joint technology;

System Type: 2-way full-range, low-frequency ported
  1. Woofer: 1×12" (190mm magnet, 75mm voice coil)
  2. Tweeter: 1×1.75" (44mm voice coil)
  3. Frequency Range (+3dB): 50 Hz - 20 kHz
  4. Sensitivity (1W/1m): 98 dB
  5. Rated Impedance: 8 Ω
  6. Maximum Sound Pressure Level (SPL): (Continuous/Peak) 117 dB / 124 dB
  7. Rated Power (RMS): 400 W / 800 W / 1600 W (Continuous/Music Signal/Peak)
  8. Crossover Frequency: 1.65 kHz
  9. Coverage Angle: 90° (H) × 60° (V)
  10. Panel Material: 15mm-thick high-density board (HDF)
  11. Surface Finish: Black wear-resistant eco-friendly water-based paint
  12. Grille: Black steel mesh with gauze mesh
  13. Physical Dimensions: W×D×H: 352mm×385mm×602mm
  14. Net Weight: 21.6 kg
  15. Connector: Speakon NL4 × 2
* Page content update time:2025-10-31 17:21:17,The relevant information on the website is for reference only. All products are subject to physical inspection and are subject to change without prior notice.
