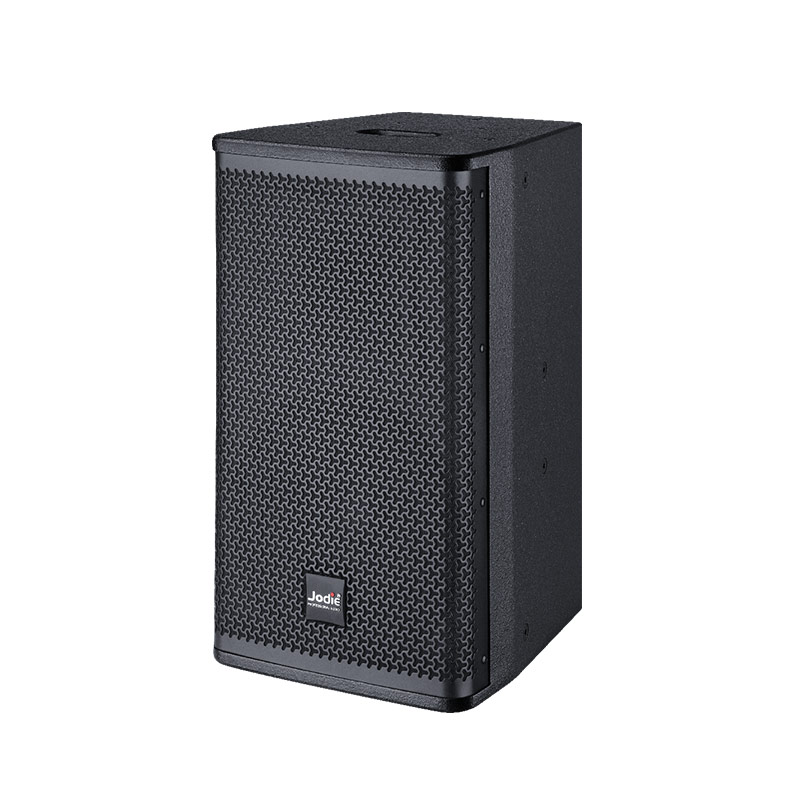

Entertainment Professional Speaker

Model:HK-10   Guangzhou Jodie Audio Equipment Co., Ltd.

*Scope of application: KTV private rooms, party rooms, and clubs with central or supplementary sound.
*Delicate tone, good clarity, compact and exquisite size, stylish and high-end appearance
*10 inch die cast aluminum basin frame, high-power differential drive bass unit
*1.75-inch circular polyethylene diaphragm compression tweeter unit
*The box is made of 15mm birch plywood, and the surface is treated with black wear-resistant spray paint * 90 ° x60 ° coverage angle design, with uniform and smooth axial and off-axis response
*Avant garde appearance, steel protective iron mesh with dust-proof surface mesh
*A precisely designed frequency divider can optimize power response and mid frequency performance in the vocal section
*Multiple hanging methods, convenient for multiple installation methods, one socket for installation on the pole.

System Type: Two-way Full Range, Low Frequency Opposing Type
1. Low Frequency Unit: 1 * 10-inch Jointed Unit
2. High Frequency Unit: 1x1.35-inch Imported Celestion Unit
3. Frequency Range (+3dB): 53 Hz - 20 KHz
4. Sensitivity (1W/1m): 96 dB
5. Rated Impedance: 8 Ω
6. Maximum Sound Pressure Level: (Continuous/Peaking) 118dB / 123dB
7. Rated Power (RMS): 300 W/600 W/1200 W (Continuous/Music Signal/Peak)
8. Crossover Point: 1.82 KHz
9. Coverage Angle: 90° (Horizontal) x 60° (Vertical)
10. Panel: 15mm Birch Plywood
11. Surface: Black Wear-resistant Environment-friendly Water-based Paint
12. Cover: Black Iron Mesh with Wire Mesh
13. Physical Dimensions: W*D*H: 300mm x 340mm x 522mm
14. Net Weight: 17.5 KG
15. Connectors: Speakon NL4×2
* Page content update time:2025-06-06 16:59:31,The relevant information on the website is for reference only. All products are subject to physical inspection and are subject to change without prior notice.
