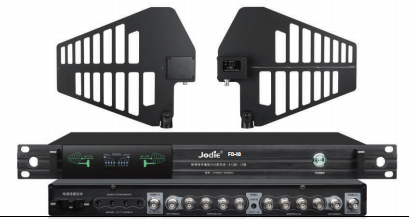

Antenna Amplifier

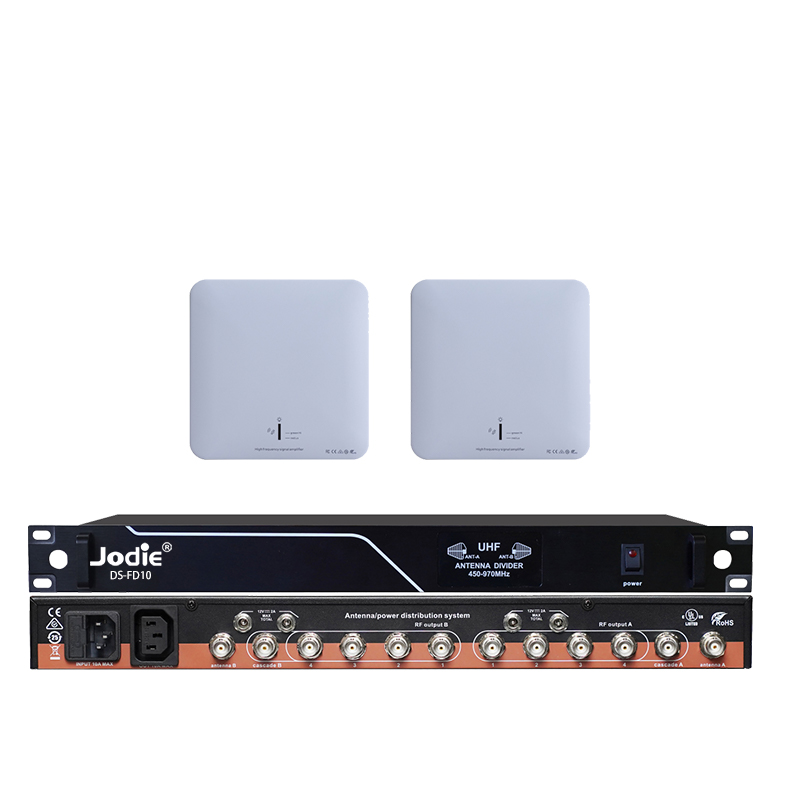

Model:DS-FD10 Guangzhou Jodie Audio Equipment Co., Ltd.
1. The microphone main unit can be connected to two antennas through one antenna box. 2. One antenna can also be connected to the box, and then the box can be connected in series with another box to achieve regional signal coverage. The functions can be selected according to the actual situation of the project. 3. The microphone main unit or the antenna amplifier main unit has power supply, so there is no need to supply power separately to the box. If the connected microphone main unit does not have a power supply, it can be directly connected to a 5-18V power adapter.
Frequency range: 450 - 970 MHz
Input cut-off point: +22 dBm
Noise ratio: 4.0 dB Type (Center Band)
Gain: +6 - 9 dB (Center Band)
Output impedance: 15 dB min
Impedance: 50 Ω Directional
Bandwidth: 300 MHz
Connector: BNC
Power supply: 100 - 240 V / 50 / 60 Hz
Power consumption: 170 mA
This product has a beautiful appearance, is easy to install, and can receive signals in a 720° full-directional manner. It is the ideal choice for antenna distribution systems.
1. Two microphones or microphone hosts can be connected to one antenna box.
2. One antenna can be connected to the box, and then the box can be connected to another box for series connection to achieve regional signal coverage. The function can be selected according to the actual project situation.
3. The microphone host or antenna amplifier host has power supply and does not need to supply power separately to the box. If the microphone host does not have power supply, it can be directly connected to a 5 - 18 V power adapter.
Directionality: 720° full-directional
Operating frequency: 490 MHz - 960 MHz
Roundness: ≤ 5 dB;
Active gain: 14 ± 3 dB
Noise coefficient: ≤ 3.5 dB
Output P - 1 dB: ≥ -10 dBm
Operating voltage: DC 5 - 18 V
Operating current: ≤ 35 mA
VSWR: ≤ 3
